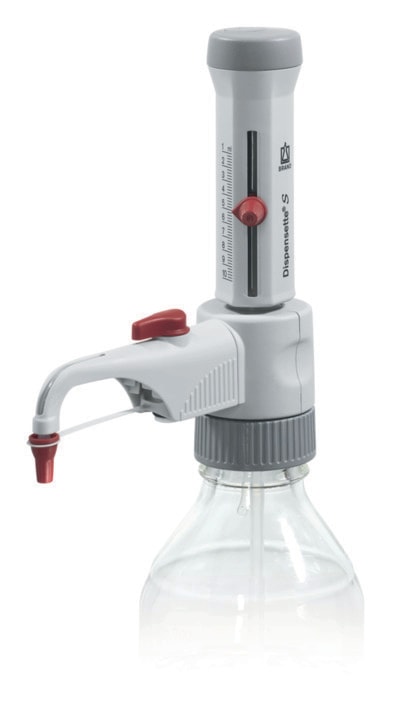

Dispensette® S, Analog-adjustable, DE-M, 0.1-1ml, with recirculation valve
Product code: BRA.4600101 BRA.4600101
The Dispensette® S is your number 1 solution for direct bottle-top dispensing. It makes dispensing liquids safer and easier. Thanks to the
Volume range
Recirculation valve
Via de knop “offerte aanvraag” kan u vrijblijvend contact met ons opnemen voor verdere informatie.
| ACTIVEER VARIANT | VOLUME RANGE | RECIRCULATION VALVE | PRIJS | AANTAL |
|---|---|---|---|---|
| BRA.4600100 |
0,1 - 1 ml |
without |
-
+
|
|
| BRA.4600101 |
0,1 - 1 ml |
with |
-
+
|
|
| BRA.4600120 |
0,2 - 2 ml |
without |
-
+
|
|
| BRA.4600121 |
0,2 - 2 ml |
with |
-
+
|
|
| BRA.4600130 |
0,5 - 5 ml |
without |
-
+
|
|
| BRA.4600131 |
0,5 - 5 ml |
with |
-
+
|
|
| BRA.4600140 |
1 - 10 ml |
without |
-
+
|
|
| BRA.4600141 |
1 - 10 ml |
with |
-
+
|
|
| BRA.4600150 |
2,5 - 25 ml |
without |
-
+
|
|
| BRA.4600151 |
2,5 - 25 ml |
with |
-
+
|
|
| BRA.4600160 |
5 - 50 ml |
without |
-
+
|
|
| BRA.4600161 |
5 - 50 ml |
with |
-
+
|
|
| BRA.4600170 |
10 - 100 ml |
without |
-
+
|
|
| BRA.4600171 |
10 - 100 ml |
with |
-
+
|
Dispensette® S, Analog-adjustable, DE-M, 0.1-1ml, with recirculation valve
Product beschrijving
The Dispensette’« S is your number 1 solution for direct bottle-top dispensing. It makes dispensing liquids safer and easier. Thanks to the special functional design of the piston, the Dispensette’« S operates smoothly, requiring minimum effort when filling and dispensing. The volume is adjusted quickly and set reliably. The Dispensette’« S bottle-top dispenser has a proven track record in demanding continuous-use applications and when used with aggressive substances.
Dispensette’« S (red color-code): Ideal for dispensing aggressive reagents, including concentrated bases and acids such as H3PO4, H2SO4 (except e.g., HCl, HNO3 und HF), saline solutions, as well as many organic solvents. Analog-adjustable Model: Rapid and safe volume setting with new internal scalloped track. Simple calibration adjustment with a supplied tool.
- Minimum operating forces, maximum comfort.
- Trusted in challenging continuous operation and with aggressive media.
- Number 1 for dispensing direct from the bottle.
Items supplied: Dispensette’« S bottle-top dispenser, DE-M marking, with performance certificate, telescoping filling tube, recirculation valve and recirculation tube (optional), mounting tool and adapters of polypropylene (Nominal volume: 1, 2, 5, 10ml: GL 24-25, GL 28/S28, GL 32-33, GL38, S40 / Nominal volume 25, 50, 100ml: GL 32-33, GL38, S40)
Dispensette® S, Analog-adjustable, DE-M, 0.1-1ml, with recirculation valve
Product specificaties
Packaging Unit
1 unit
Brand
Brand
Volume range
0,1 - 1 ml
Accuracy in % (±)
0,6 %
Accuracy in µl (±)
6 µl
Coefficient of variation (%)
0,2 %
Coefficient of variation (µl)
2 µl
Recirculation valve
with
Intake pipe length
125-240 mm
subdivision
0,02 ml
Adapter for bottle threads
GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40
